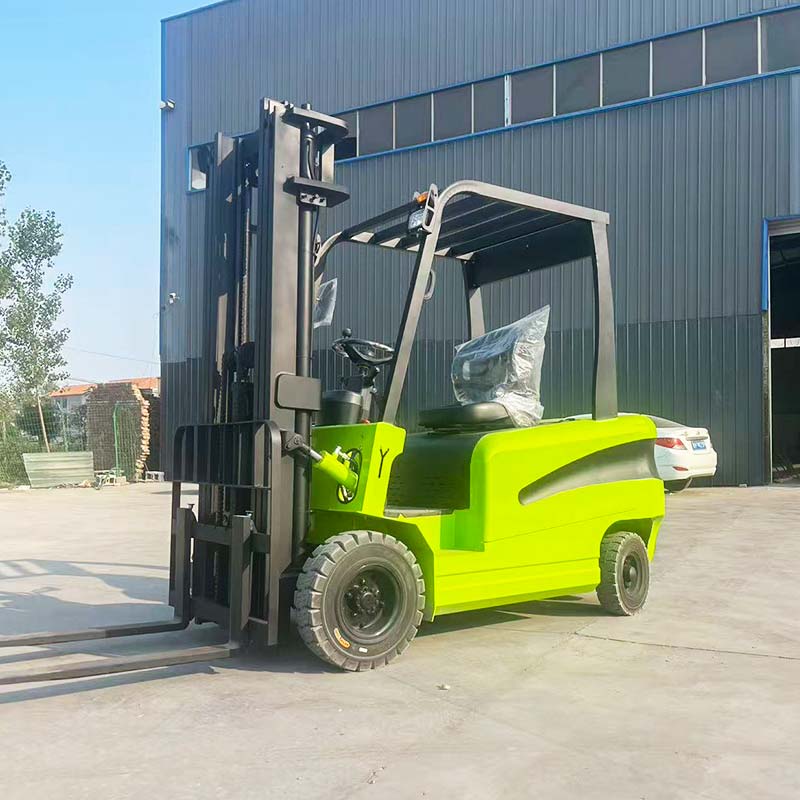

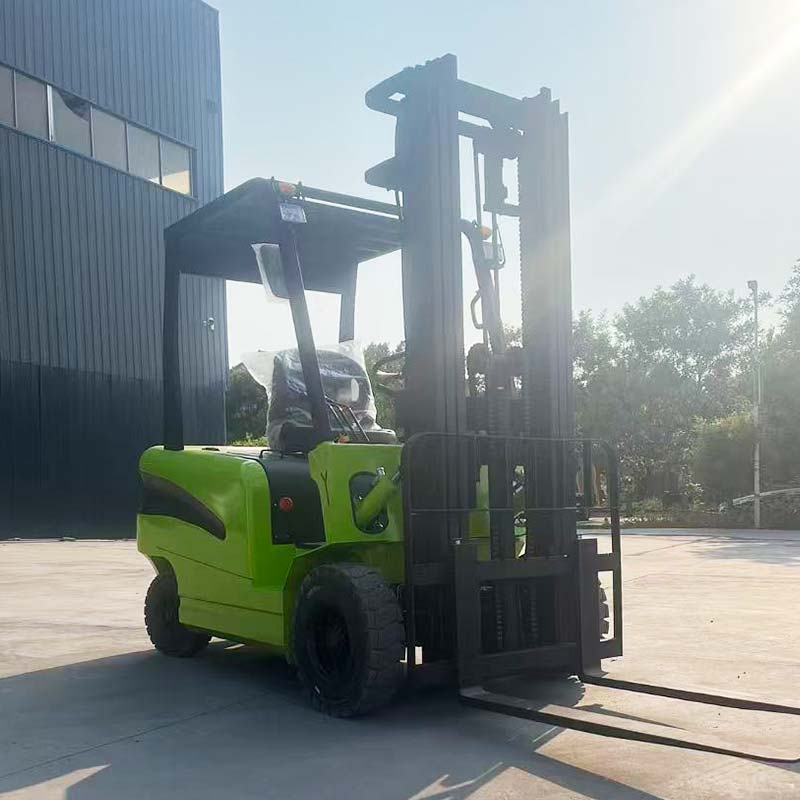

CPD-30

This 3.0T electric forklift is specifically designed for heavy-duty applications and is suitable for large warehouses or logistics distribution centers. It features powerful lifting capabilities and high stability, enabling it to withstand frequent, high-intensity operations, making it ideal for large-scale material handling and stacking.

Features Of Electric Forklifts

Vehicle specifications
Technical Parameters	Maximum lifting capacity	2800kg	The vehicle body dimensions, lifting height, and other specifications can be customized according to customer requirements.
	Length	2750 mm (clear fork length)
	Length	3970 mm (total length including forks)
	Width	1200mm
	Height	2150mm
	Vehicle Weight	3700kg
	Lifting Height	3 meters
	Body Material	New stamping car body
Electrical Systems	Driving Motor	7500W AC traction motor
	Voltage	72V
	Controller	High-power controller for landslide prevention.
	Battery	10.70 yuan maintenance-free lead-acid battery
	Lights and Signals	Headlights, left and right turn signals, brake lights,Driving lights, instrument panel, electric horn, etc.
Chassis System	Drive Axle	Cast steel 310 bridge
	Tires	Front wheels 650-10, rear wheels 500-8, Grade A solid tires
	Steering Axle	Heavy-duty rear axle for forklifts
	Braking Method	Handbrake and hydraulic brake
Other configurations	Lift Cylinder	Reinforced sealed double hydraulic cylinders
	Fork Length	1220mm extra-thick forged forks
	Hydraulic Lifting Motor	5000W hydraulic motor
	Gantry Material	Widened special steel mast
	Steering Method	Hydraulic power steering
	Turning Radius	90° on-the-spot turning
	Charging Time	4-6 hours (operating time)
	Continuous Working Time	6-8 hours (charging time)
	Climbing Angle	15° (gradeability)
This table is for reference only; the actual configuration may vary.
